FlatPAC-EN™ AC-DC Power Supply
This product is not recommended for new designs.
Please use the Power System Designer tool to find a product for your project.

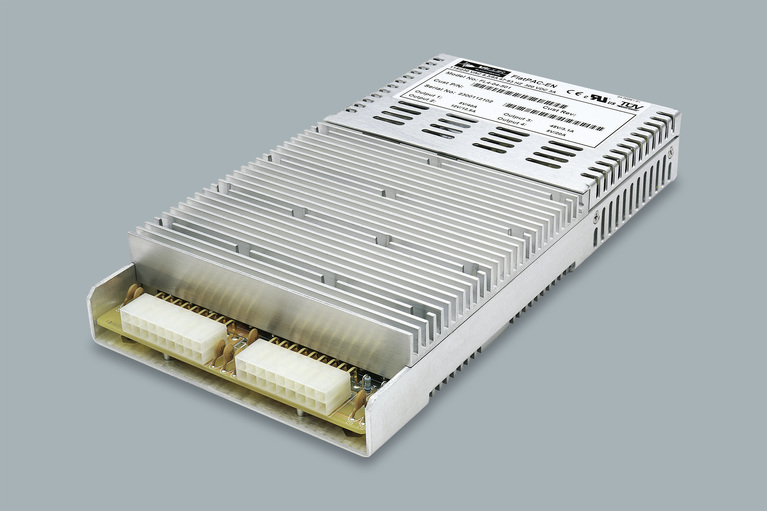

The FlatPAC-EN is an ultra-low-profile power supply with a power density greater than 7W/in³.
The FlatPAC‑EN is capable of providing up to 500W (425W for EN compliance) from up to four isolated outputs. The FlatPAC-EN can be configured with standard Vicor DC-DC converter modules. Like all other configurable power supplies offered by Vicor, the optimum FlatPAC-ENsolution can be factory-configured based on the exact voltage and power requirements of the customer.
パワーシステムデザイナー
パワーシステムデザイナーを使ってクイック製品検索Watch demo video
出力
Min output:
Minimum output:
Nom output:
Nominal output:
Max output:
Maximum output:
特長と利点
特長と利点
User-configurable supply with one to four outputs
Protective features: inrush limiting, transient protection and EMI filtering
Can operate in both conduction and convection applications
Meets EN61000-3-2 European harmonic requirements
