End of Life-Product Obsolescence

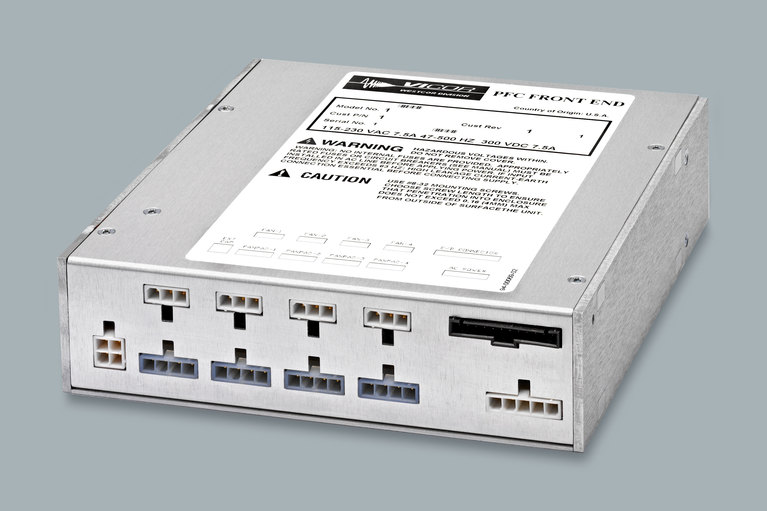

The PFC Front End is a low-profile, 1RU enclosed chassis-mount AC front-end that may be used with any 300 or 375V Vicor VI-200 / VI-J00 or Maxi, Mini, Micro modules, high-voltage BCM, VIPAC Arrays or other 375V module to create a complete, high-density AC-DC power supply. Accepting universal input voltages of 85 – 264V_AC, and 100 – 385V_DC, the PFC Front End can deliver up to 2,200W from four non-isolated outputs. The PFC Front End can be ordered with output voltages set to either 360, 375 or 384V_DC dependent on model. With an extremely compact package size of 1.72 x 6.40 x 7.00in [43.69 x 162.6 x 177.8mm], the PFC Front End can provide >28W per cubic inch. Besides meeting the cTÜVus and CE Mark safety agency approvals, the PFC Front End complies with harmonic current limits per EN61000-3-2, electrical fast transient / burst EN61000-4-5. It also meets MIL-STD-810E for vibration.
