ケーススタディ: Ultrasonic pipeline inspection

Power solution reduces downtime

product-table-datasheet-icon-default.svgPDF

お客様の課題

This manufacturer of inspection equipment was looking for ways of improving the integrity of pipeline surveys while reducing the associated downtime. Upgrades to the sensors, cameras and onboard processors, together with the use of higher torque drive motors to provide higher crawler speed, increased the onboard power required. Space and weight for the power supply upgrade was, however, limited. Key goals were:

  • In-depth inspection requires more sensors, increased processing and higher power demands
  • Minimizing pipeline downtime requires a faster crawler with more power for drive motors
  • Maximizing crawler payload limits space available for the power supply

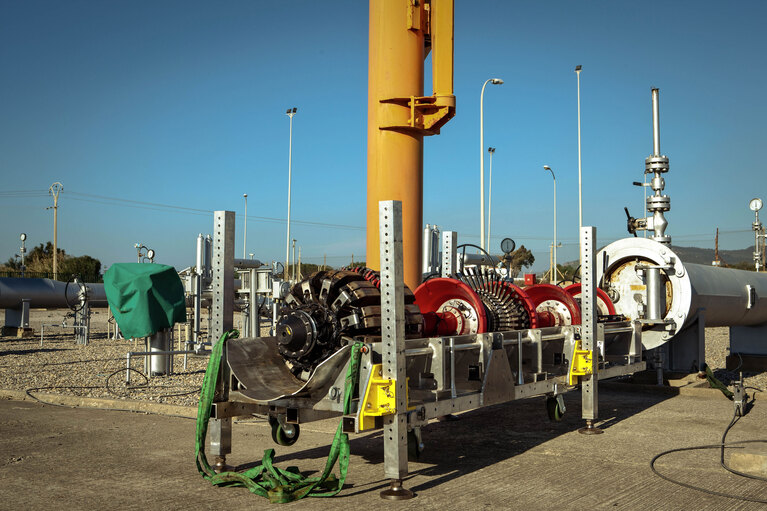

inspection UAV image

Vicorソリューション

Onboard the crawler the 24V battery supply was regulated down to 12V for the drive motors, sensors and processor by a DCM DC-DC converter. The small size of the DCM converter, which provided 320W in a package of just 38.7 x 22.8 x 7.2mm, freed up space for the additional sensors.

主な利点

主な利点

Power supply size reduced by a small footprint, low profile (7.2mm) and low weight converter

Power supply size reduced by a small footprint, low profile (7.2mm) and low weight converter

EMI icon

Minimal electromagnetic interference (EMI)

high efficiency icon

ZVS topology enables modules with up to 98% efficiency

Vicor DCM solution reduces downtime

A DCM converter provided the isolation and regulation for motors and sensors. The rugged packaging and high efficiency (93%) of the DCM converter helped to reduce the operating temperature and improved the reliability of the power solution. To analyze this power chain go to the Vicor Whiteboard online tool.

Learn more about the modular approach power.

電力供給ネットワーク(PDN)

Power Delivery Network for Ultrasonic pipeline inspection
DCM product family image

DCM DC-DCコンバータ


絶縁 レギュレータ


入力電圧: 9 – 420V


出力電圧: 3.3, 5, 12, 13.8, 15, 24, 28, 36, 48V


出力電力: 最大1300W


ピーク効率: 96%


24.8 x 22.8 x 7.21mm 他
