MIL-COTS VIPAC™ パワーシステム
VIPACファミリーのパワーシステムは、MIL-COTSアプリケーション用のユーザー設定が可能なモジュール式電源ソリューションです。 EMIフィルタリングと過渡保護機能を備えたVicorのM-FIAM5BまたはM-FIAM9、Vicor Maxi、MiniおよびMicroシリーズDC-DCコンバータ(HまたはMグレード)、出力接続とメカニカルプラットフォームの選択肢が組み込まれています。 MIL-COTS VIPACは、1~3出力で、3.3 VDCから48 VDCまでの低電圧、出力あたり50 - 400ワットの出力が指定できます。VIPACは、28VDC入力の様々なパッケージサイズを利用でき、0.75ほどの薄型も利用できます。

パワーシステムデザイナー
特長と利点
特長と利点
単、二、三出力
MIL-STD-461E EMI 準拠
入力トランジェント保護
-MIL-STD-704E/F (M-FIAM5B)
-MIL-STD-704A/E/F and MIL-STD-1275A/B/D (M-FIAM9)
Compliant to MIL-STD-810 for shock and vibration
コンテンツ
設計エンジニア向けコンテンツ
Build small, lighter power systems by eliminating bulk capacitance
Powering systems that are eight to ten times smaller and lighter than conventional solutions

アクティブサスペンションの長年の電力課題を解決する48Vと高電力密度のモジュール
HongfaはVicorと協業し、業界で最も高性能かつ最小サイズのアクティブサスペンション用電源システムを設計しました。

補償光学システムに欠かせない、放熱性能に優れた高電力密度電源モジュール。電圧を正確に調整することで、温度制御に有利なソリューションを実現しました。
For California residents see information regarding California Proposition 65
- VIPAC Power System Configuration "A"
PDF DXF - VIPAC Power System Configuration "B"
PDF DXF - VIPAC Power System Configuration "C"
PDF DXF - VIPAC Power System Configuration "D"
PDF DXF - VIPAC Power System Configuration "E"
PDF DXF - VIPAC Power System Configuration "F"
PDF DXF - VIPAC Power System Configuration "G"
PDF DXF
Promo Component
関連製品
関連製品



A highly flexible system of DC input; power building blocks that can be configured for up to 4 outputs

Rugged input filter module for MI-200/MI-J00




Active PFC module

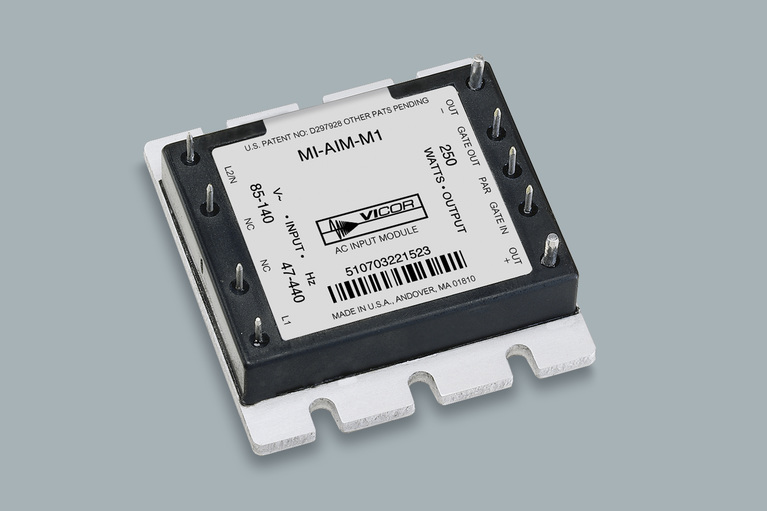

AC input filter and rectifier for PFMs in a VIA package
