Digital Isolator
This product is not recommended for new designs.

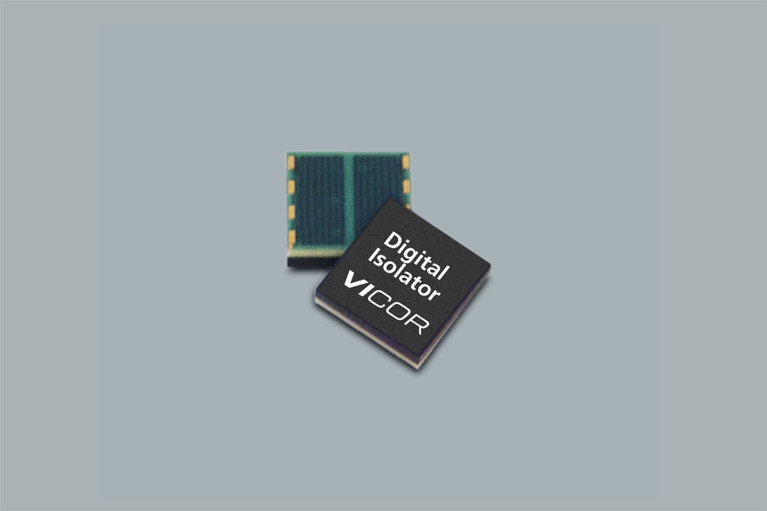

The I13TL1A0 is a three-channel passive digital isolator which enables secondary-referenced digital power-system monitoring and control when used in conjunction with the Vicor digital supervisor (D44TL1A0) and high-performance power conversion, regulation and transformation modules and bricks. The I13TL1A’s passive design reduces system complexity, while its small footprint increases system power density.
Filter Products
0 Products
0 Products
| Part Number | Input (V) | Isolation (Vdc) | Package | Add to cart / view details | ||
|---|---|---|---|---|---|---|
|
I13TL1A0 »
|
|
Part Number: I13TL1A0 » |
Input (V):
3.3
|
Isolation (Vdc):
4242
|
Package:
10 x 10 LGA SiP
|
View details |
Power System Designer
Quick product searchWatch demo video
Output
Min output:
Minimum output:
Nom output:
Nominal output:
Max output:
Maximum output:
Features and Benefits
Features and benefits
Powered from input signal, no VCC required
Operating input voltage = 3.3V (typ.)
Working voltage = 420VDC, 300VRMS
AC isolation voltage = 3000VRMS
