48V power systems reduce losses and downsize power designs. Vicor is making the transition from 12V to 48V easier, delivering a competitive advantage
Converting 48V to the point of load
High power density
High efficiency
Easy thermal management
Scalable for more power

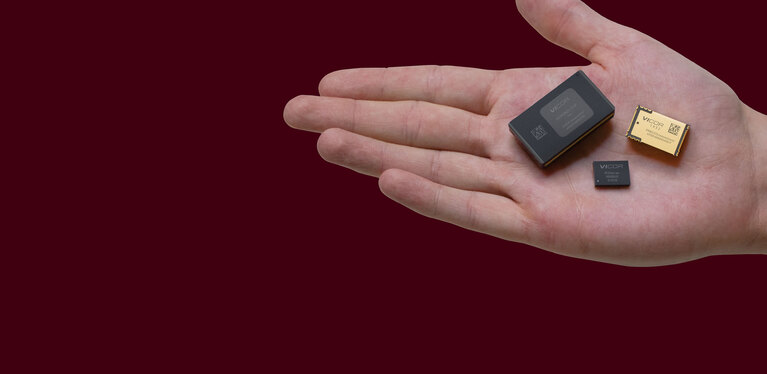

High performance power modules optimized for 48V power delivery networks
Solutions for the entire power delivery network
The Vicor 48V ecosystem of high performance power modules provides complete power delivery networks to convert high voltage to a 48V bus, power downstream loads, and eases the transition with modules to power legacy 12V loads.
Compact, efficient power for the point of load
Our DC-DC converters and regulators enable efficiencies and superior size/weight performance, while also providing the flexibility and scalability the modular approach to power is known for.
Modules to convert 48V to the point-of-load voltage
Highest power delivery
Isolated regulated
Input: 9 – 420V
Output: 3.3, 5, 12, 13.8, 15, 24, 28, 36, 48V
Power: Up to 1300W
Peak efficiency: 96%
As small as 24.8 x 22.8 x 7.21mm
Most compact power delivery
Non-isolated regulated
Inputs: 12V (8 – 18V), 24V (8 – 42V), 48V (30 – 60V)
Output: 2.2 – 16V
Current: Up to 22A
Peak efficiency: 98%
As small as 10.0 x 10.0 x 2.56mm
Most flexible power delivery
Non-isolated regulated
Input: 8 – 60V
Output: 10 – 54V
Power: Up to 150W continuous
Efficiency: Over 98%
10.5 x 14.5 x 3.05mm
Compact, low loss, board mounted power delivery
Ideal point of load conversion occurs when the regulation VIN and VOUT are equal, and when high current delivery is as close as possible to the point-of-load. Vicor Factorized Power Architecture separates the dedicated functions of regulation and transformation into separate power modules – PRMs and VTMs – so that each can be optimized for the highest efficiency and density.
Non-isolated regulated
Input: 48V (36 – 75V)
Output: 48V (5 – 55V)
Power: Up to 600W
Peak efficiency: 98%
As small as 22.0 x 16.5 x 6.73mm
Isolated fixed-ratio
Input: 0 – 60V
Output: 0 – 55V
Current: Up to 115A
Peak efficiency: 97%
As small as 22.83 x 8.52 x 4.9mm
Application examples
High performance computing
Vicor vertical power delivery improves performance and simplifies motherboard design. It enables processors to achieve previously unattainable performance levels necessary to fulfill the promise of high-performance applications such as Artificial Intelligence.
Automotive
Vicor DCM and PRM regulators and NBM fixed-ratio converter – when used alone or in combinations – support more than 300 configurations providing system designers with the keys to deploying the right power to each point-of-load within a 48V zonal architecture.
ATE
Vicor power modules' inherently low noise contributes to fully achieving inspection requirements. Their low profile simplifies thermal management, which in turn simplifies the mechanical design of inspection systems, allowing for maximum throughput in the same floorspace.
