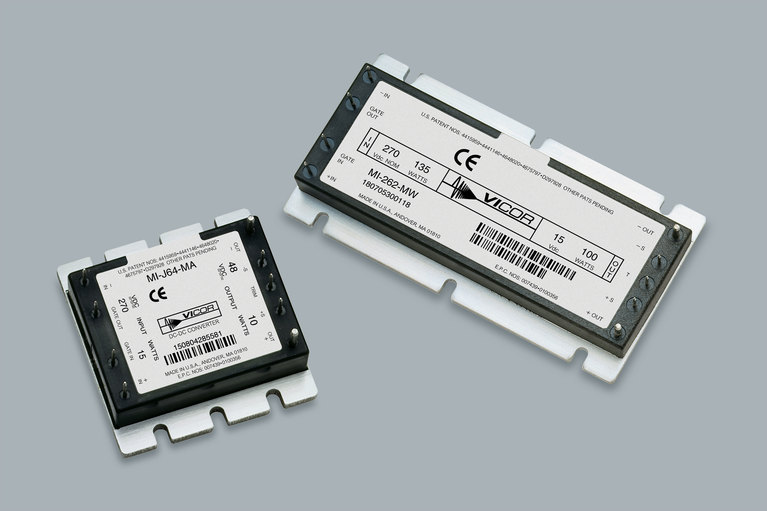

Rugged DC-DC converters supporting traditional design
MIL-COTS MI-AIM™ AC Input Module
Rugged AC input filter and rectifier for MI-2xxxx/MI-Jxxxx
The MI-AIM AC input module interfaces directly with AC mains to provide line rectification, EMI filtering, transient protection and inrush limiting. These front-end modules accept 115VAC and provide 250W of output power for any of the Vicor Mi-x7x family of full-brick and half-brick sized modules. The MI-AIM meets CE102 conducted emissions requirements of MIL-STD-461D/E, the transient and spike requirements of MIL-STD-704A and the environmental test requirements of MIL-STD-810.
The MI-AIM meets:
- CE102 conducted emissions requirements of MIL-STD-461D/E
- The transient and spike requirements of MIL-STD-704A
- The environmental test requirements of MIL-STD-810
Filter Products
0 Products
0 Products
| Part Number | Data Sheet | Compatible MI-Series | Converter | Temperature | Mounting Style | Add to cart / view details | ||
|---|---|---|---|---|---|---|---|---|
|
MI-AIM-M1
|
Part Number: MI-AIM-M1 |
Data Sheet:
 |
Compatible MI-Series:
MI-27x / MI-J7x
|
Converter:
M-Grade
|
Temperature:
-55 to +85 / +100°C
|
Mounting Style:
Half Brick
|
View details | |
|
MI-AIM-I1
|
Part Number: MI-AIM-I1 |
Data Sheet:
|
Compatible MI-Series:
MI-27x / MI-J7x
|
Converter:
I-Grade
|
Temperature:
-55 to +85 / +100°C
|
Mounting Style:
Half Brick
|
View details |
Power System Designer
Quick Product SearchWatch demo video
Output
Min output:
Minimum output:
Nom output:
Nominal output:
Max output:
Maximum output:
Features and Benefits
Features and benefits
Compatible with Vicor MI‑x7x family of modules
Inrush limiting
MIL‑STD‑461D/E CE102 compliance for conducted emissions
MIL‑STD‑704A compliance for input transients
