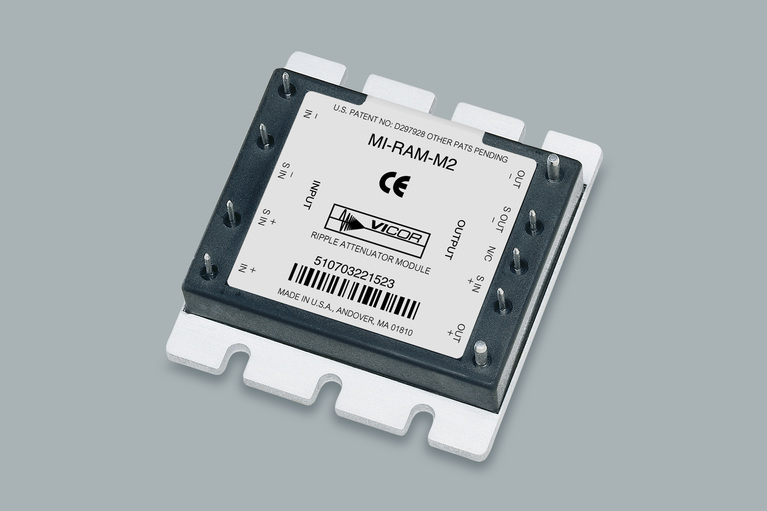

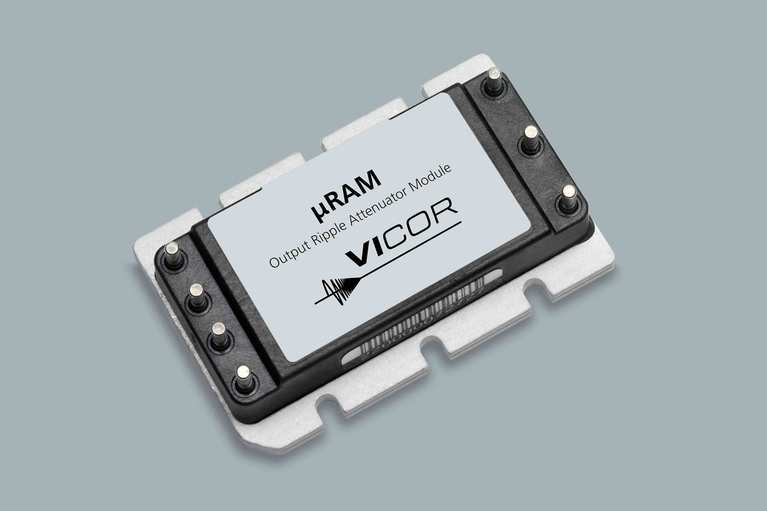

MIL-COTS MI-RAM™ output filter
Rugged output ripple attenuator for VI-200/VI-J00
The MI-RAM is designed for applications where extremely-low-noise outputs are required. When used with any Vicor MI-series DC-DC converter, the MI-RAM reduces both line-frequency-related ripple and switching noise to less than 10mVP-P, DC to 20MHz. The combination of the MI-RAM with an MI-series converter provides the output-noise performance of a linear supply at a power density in excess of 15W/in³.
All of the features of the MI-series converter remain available while using the MI-RAM including output voltage trimming, OVP and OTP (MI-200™ only), current limiting, remote sense and logic enable/disable.
Filter Products
0 Products
0 Products
| Part Number | Data Sheet | Product Grade | Current Rating | Packaging Option | Heat Sink Option | Add to cart / view details | ||
|---|---|---|---|---|---|---|---|---|
|
MI-RAM-I2-F2
|
|
Part Number: MI-RAM-I2-F2 |
Data Sheet:
 |
Product Grade:
-40 °C to +100 °C
|
Current Rating:
Up to 20A
|
Packaging Option:
FinMod
|
Heat Sink Option:
0.50” fins, longitudinal
|
View details |
|
MI-RAM-M1-S
|
|
Part Number: MI-RAM-M1-S |
Data Sheet:
|
Product Grade:
-55 °C to +100 °C
|
Current Rating:
Up to 10A
|
Packaging Option:
SlimMod
|
Heat Sink Option:
N/A
|
View details |
|
MI-RAM-M2-S
|
|
Part Number: MI-RAM-M2-S |
Data Sheet:
|
Product Grade:
-55 °C to +100 °C
|
Current Rating:
Up to 20A
|
Packaging Option:
SlimMod
|
Heat Sink Option:
N/A
|
View details |
|
MI-RAM-I1
|
|
Part Number: MI-RAM-I1 |
Data Sheet:
|
Product Grade:
-40 °C to +100 °C
|
Current Rating:
Up to 10A
|
Packaging Option:
Standard
|
Heat Sink Option:
N/A
|
View details |
|
MI-RAM-M1
|
|
Part Number: MI-RAM-M1 |
Data Sheet:
|
Product Grade:
-55 °C to +100 °C
|
Current Rating:
Up to 10A
|
Packaging Option:
Standard
|
Heat Sink Option:
N/A
|
View details |
|
MI-RAM-M2
|
|
Part Number: MI-RAM-M2 |
Data Sheet:
|
Product Grade:
-55 °C to +100 °C
|
Current Rating:
Up to 20A
|
Packaging Option:
Standard
|
Heat Sink Option:
N/A
|
View details |
|
MI-RAM-I2
|
|
Part Number: MI-RAM-I2 |
Data Sheet:
|
Product Grade:
-40 °C to +100 °C
|
Current Rating:
Up to 20A
|
Packaging Option:
Standard
|
Heat Sink Option:
N/A
|
View details |
Power System Designer
Quick product searchWatch demo video
Output
Min output:
Minimum output:
Nom output:
Nominal output:
Max output:
Maximum output:
Features and Benefits
Features and benefits
Reduces output PARD to <10mVP-P
Full attenuation up to 20A load
