MIL-COTS PRM™ Regulator and VTM™ Current Multiplier
Rugged factorized power solutions
The MIL-COTS PRMs meet many of the ground vehicle and airborne requirements of MIL-STD-1275 and MIL-STD-704. Rated for up to 500W, the PRMs produce a nominal factorized bus voltage, controllable over the range of 20 – 55VDC. The downstream isolated VTM is available with twelve voltage division ratios from 1:1 to 1:32 and provides the user with flexibility to supply up to 80A at any output voltage from 1 to 50VDC in a surface-mount package occupying only 1in2.
PRM Regulator
Filter Products
0 Products
0 Products
| Part Number | Data Sheet | Input (V) | Output (V) | Output Power (W) | Mounting Style | Package | Add to cart / view details | ||
|---|---|---|---|---|---|---|---|---|---|
|
MPRM48NF480M500A00
|
 |
Part Number: MPRM48NF480M500A00 |
Data Sheet:
 |
Input (V):
48 (38-55)
|
Output (V):
48 (20-55)
|
Output Power (W):
500
|
Mounting Style:
Surface Mount
|
Package:
Full Chip
|
View details |
|
MPRM48NH480M250A00
|
 |
Part Number: MPRM48NH480M250A00 |
Data Sheet:
|
Input (V):
48 (38-55)
|
Output (V):
48 (20-55)
|
Output Power (W):
250
|
Mounting Style:
Surface Mount
|
Package:
Half Chip
|
View details |
|
MPRM28AF360M120A00
|
|
Part Number: MPRM28AF360M120A00 |
Data Sheet:
|
Input (V):
28 (14-50)
|
Output (V):
36 (26-50)
|
Output Power (W):
200
|
Mounting Style:
Surface Mount
|
Package:
Full Chip
|
View details |
|
MPRM28AT360M120A00
|
|
Part Number: MPRM28AT360M120A00 |
Data Sheet:
|
Input (V):
28 (14-50)
|
Output (V):
36 (26-50)
|
Output Power (W):
200
|
Mounting Style:
Through hole
|
Package:
Full Chip
|
View details |
|
MPRM48NT480M500A00
|
|
Part Number: MPRM48NT480M500A00 |
Data Sheet:
|
Input (V):
48 (38-55)
|
Output (V):
48 (20-55)
|
Output Power (W):
500
|
Mounting Style:
Through Hole
|
Package:
Full Chip
|
View details |

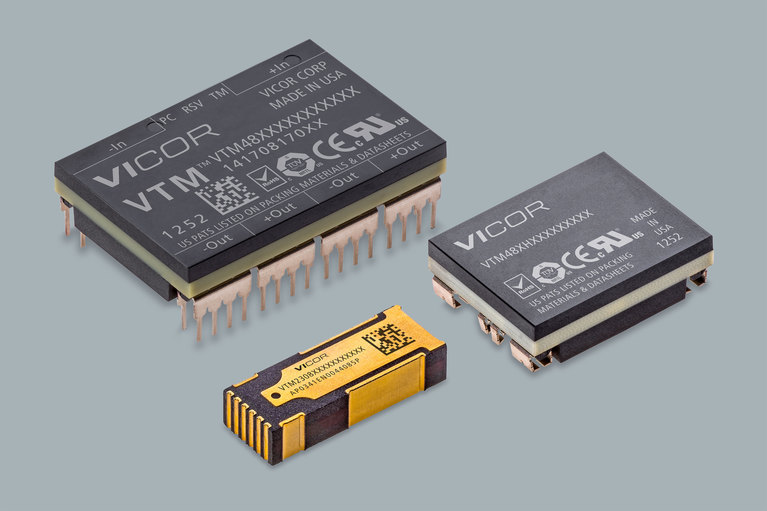

VTM Current Multiplier
Filter Products
0 Products
0 Products
| Part Number | Data Sheet | Vin (V) | Vout (V) | Output Currents (A) | Mounting Style | Package | Add to cart / view details | ||
|---|---|---|---|---|---|---|---|---|---|
|
MVTM36BT045M027A00
|
 |
Part Number: MVTM36BT045M027A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
4.50 (3.25-6.25)
|
Output Currents (A):
27
|
Mounting Style:
Through hole
|
Package:
Full Chip
|
View details |
|
MVTM36BT060M020A00
|
|
Part Number: MVTM36BT060M020A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
6.00 (4.33-8.33)
|
Output Currents (A):
20
|
Mounting Style:
Through hole
|
Package:
Full Chip
|
View details |
|
MVTM36BT072M017A00
|
|
Part Number: MVTM36BT072M017A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
7.20 (5.20-10.0)
|
Output Currents (A):
17
|
Mounting Style:
Through hole
|
Package:
Full Chip
|
View details |
|
MVTM36BT090M013A00
|
|
Part Number: MVTM36BT090M013A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
9.00 (6.50-12.50)
|
Output Currents (A):
13
|
Mounting Style:
Through hole
|
Package:
Full Chip
|
View details |
|
MVTM36BT120M010A00
|
|
Part Number: MVTM36BT120M010A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
12.00 (8.67-16.70)
|
Output Currents (A):
10
|
Mounting Style:
Through hole
|
Package:
Full Chip
|
View details |
|
MVTM36BT180M007A00
|
|
Part Number: MVTM36BT180M007A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
18.00 (13.00-25.00)
|
Output Currents (A):
7.0
|
Mounting Style:
Through hole
|
Package:
Full Chip
|
View details |
|
MVTM36BT240M005A00
|
|
Part Number: MVTM36BT240M005A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
24.00 (17.30-33.30)
|
Output Currents (A):
5.0
|
Mounting Style:
Through hole
|
Package:
Full Chip
|
View details |
|
MVTM36BT360M003A00
|
|
Part Number: MVTM36BT360M003A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
36.00 (26.00-50.00)
|
Output Currents (A):
3.0
|
Mounting Style:
Through hole
|
Package:
Full Chip
|
View details |
|
MVTM36BH030M025A00
|
 |
Part Number: MVTM36BH030M025A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
3.00 (1.63-3.13)
|
Output Currents (A):
25
|
Mounting Style:
Surface Mount
|
Package:
Half Chip
|
View details |
|
MVTM36BH045M020A00
|
|
Part Number: MVTM36BH045M020A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
4.50 (3.25-6.25)
|
Output Currents (A):
20
|
Mounting Style:
Surface Mount
|
Package:
Half Chip
|
View details |
|
MVTM36BH090M010A00
|
|
Part Number: MVTM36BH090M010A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
9.00 (6.50-12.5)
|
Output Currents (A):
10
|
Mounting Style:
Surface Mount
|
Package:
Half Chip
|
View details |
|
MVTM36BF030M040B00
|
|
Part Number: MVTM36BF030M040B00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
3.00 (2.17-4.17)
|
Output Currents (A):
40
|
Mounting Style:
Surface Mount
|
Package:
Full Chip
|
View details |
|
MVTM36BF060M020A00
|
|
Part Number: MVTM36BF060M020A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
6.0 (4.33 – 8.33)
|
Output Currents (A):
20
|
Mounting Style:
Surface Mount
|
Package:
Full Chip
|
View details |
|
MVTM36BF072M017A00
|
|
Part Number: MVTM36BF072M017A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
7.20 (5.20 – 10.0)
|
Output Currents (A):
17
|
Mounting Style:
Surface Mount
|
Package:
Full Chip
|
View details |
|
MVTM36BF090M013A00
|
|
Part Number: MVTM36BF090M013A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
9.0 (6.50 – 12.5)
|
Output Currents (A):
13
|
Mounting Style:
Surface Mount
|
Package:
Full Chip
|
View details |
|
MVTM36BF120M010A00
|
|
Part Number: MVTM36BF120M010A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
12.0 (8.67 – 16.7)
|
Output Currents (A):
10
|
Mounting Style:
Surface Mount
|
Package:
Full Chip
|
View details |
|
MVTM36BF180M007A00
|
|
Part Number: MVTM36BF180M007A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
18.0 (13.0 – 25.0)
|
Output Currents (A):
7.0
|
Mounting Style:
Surface Mount
|
Package:
Full Chip
|
View details |
|
MVTM36BF240M005A00
|
|
Part Number: MVTM36BF240M005A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
24.0 (17.3– 33.3)
|
Output Currents (A):
5.0
|
Mounting Style:
Surface Mount
|
Package:
Full Chip
|
View details |
|
MVTM36BF360M003A00
|
|
Part Number: MVTM36BF360M003A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
36.0 (26.0 – 50.0)
|
Output Currents (A):
3.0
|
Mounting Style:
Surface Mount
|
Package:
Full Chip
|
View details |
|
MVTM36BT030M040B00
|
|
Part Number: MVTM36BT030M040B00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
3.0 (2.17 – 4.17)
|
Output Currents (A):
40
|
Mounting Style:
Through hole
|
Package:
Full Chip
|
View details |
|
MVTM36BF045M027A00
|
|
Part Number: MVTM36BF045M027A00 |
Data Sheet:
|
Vin (V):
36 (26-50)
|
Vout (V):
4.50 (3.25-6.25)
|
Output Currents (A):
27
|
Mounting Style:
Through hole
|
Package:
Full Chip
|
View details |
Power System Designer
Quick product searchWatch demo video
Output
Min output:
Minimum output:
Nom output:
Nominal output:
Max output:
Maximum output:
PRM Features and Benefits
PRM features and benefits
Power density up to 312W/in3
1.3MHz switching frequency
95% efficiency
ZVS buck-boost regulation
VTM Features and Benefits
VTM features and benefits
Isolated 1 – 50V output
Fast transient response
1.7MHz switching frequency
Up to 96.5% efficiency
